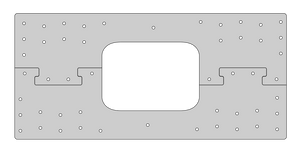

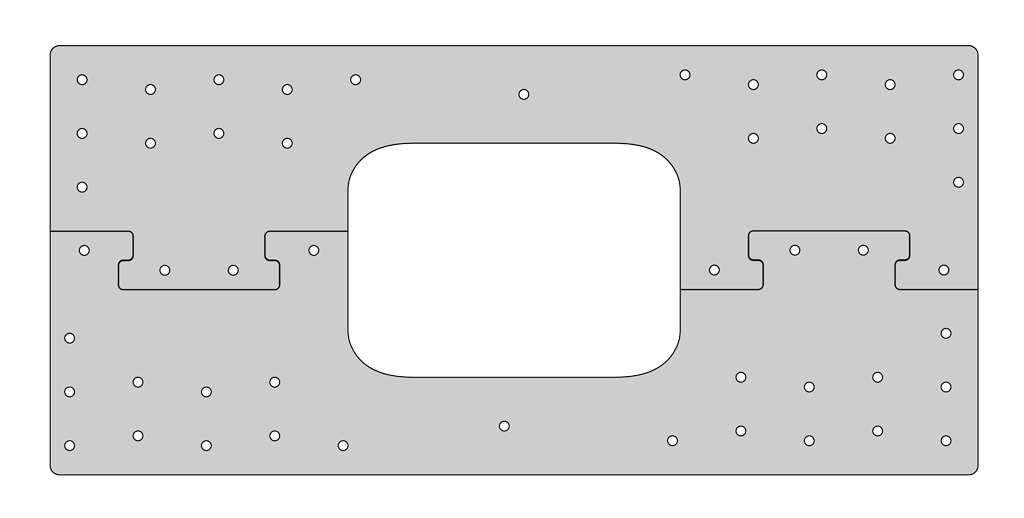

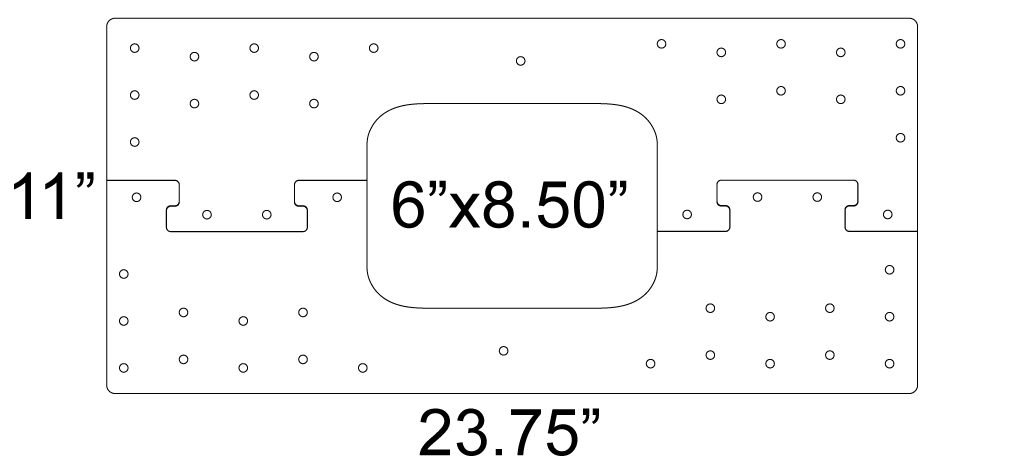

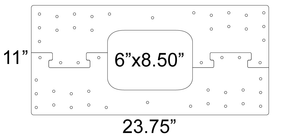

2x12 HRW Floor Joist Reinforcer Repair Kit (Patent Pending) is a 2pc interlocking solution for extra wide holes in floor joists. Reinforcing holes in floor joists and joist reinforcement is required to strengthen floor joists due to oversized holes in joists or when you need to route plumbing or other utilities through one or more Floor Joists. Joist Reinforcers allow you to run utilities through one, or a series of joists, with holes up to 6" high and 8.5" wide. The 2x12 HRW Joist Reinforcer is made of 10 gauge galvanized steel. All fasteners are included. Measures 11" high x 23.75" Wide.
Tools Needed:
- Screw Gun and Drill (Electric or Cordless)
- Construction Adhesive (optional)
- 5/32" Drill bit (Included)
- Torx T25 Driver tip (included)
- "C" Clamps (may be useful)
Returns, Refunds, and Shipping Policies
With the exception of weekends, we make every attempt to ship orders within 24 hours of when they are received. Some orders that are placed early in the day may ship that day while others may not. If your project requires faster service please call and we will do our best to accommodate your needs.
Joist Reinforcer Installation Video
What code allows for holes in Floor Joists (without Joist Reinforcer)
1. Only holes are allowed in the center 1/3rd, no notches.
2. Holes in the outer 1/3rd's of the span must be at least 2" apart.
3. Hole diameter cannot exceed 1/3rd of the depth of the Joist.
4. Hole can be no closer than 2" from the Joist edge.
With a Joist Reinforcer
1. Holes can be placed anywhere along the length of the Joist up to 12" from supporting members.
2. Hole diameter can be up to 6".
3. Hole location can be as close at 1.5" from bottom or top of Joist.
