2x6 HR Floor Joist Hole Repair Kit (2 pc)
Floor joist hole repair and reinforcing allows running utilities right through floor joists
- Regular price
- $59.95
- Regular price
-
$64.95 - Sale price
- $59.95
- Unit price
- per
- Availability
- Sold out
Shipping calculated at checkout.
Same day shipping on orders placed Mon-Fri before 3pm

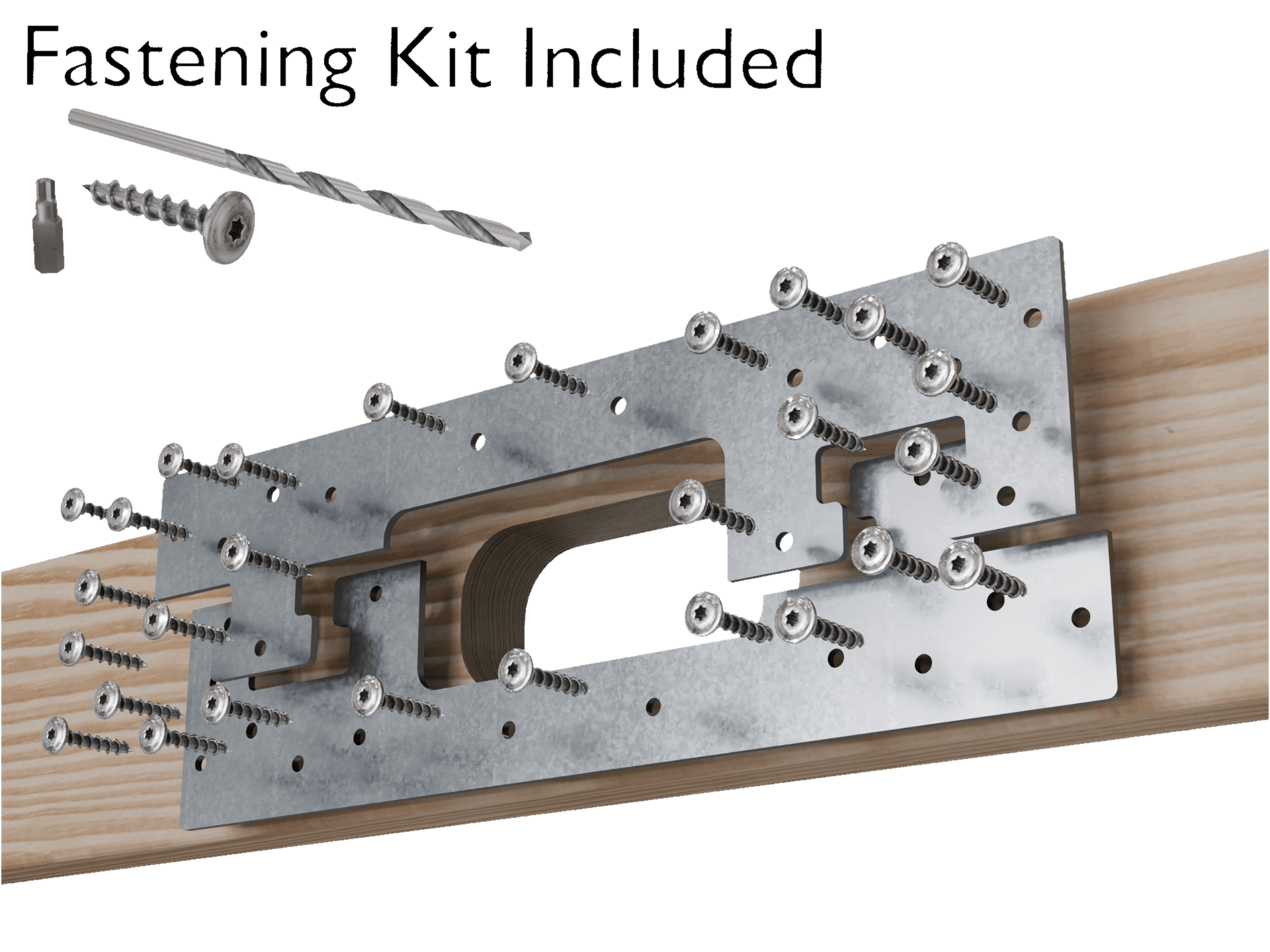

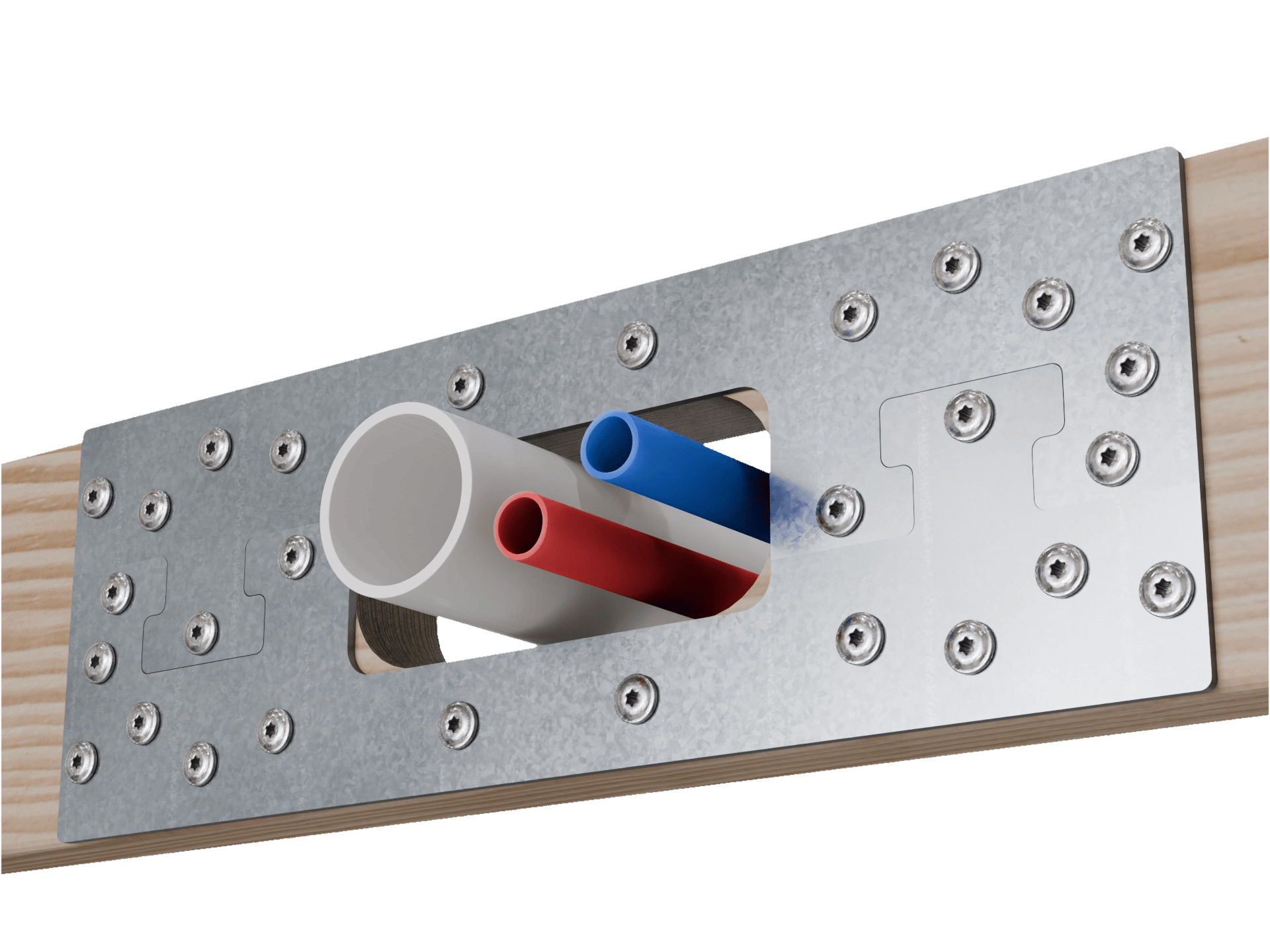

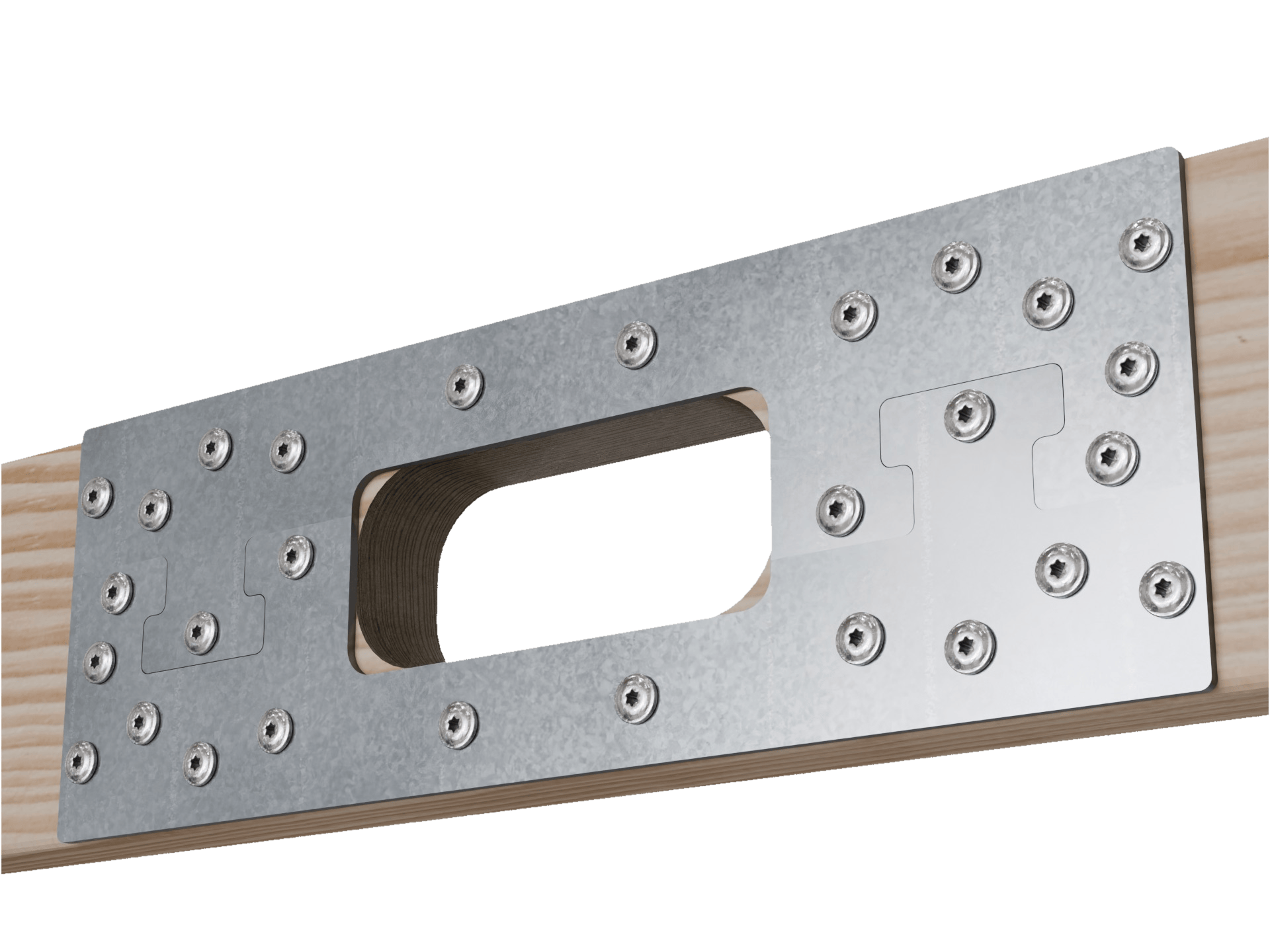

For holes up to 6" wide x 2.25" high. When it comes to floor joist repair the 2x6 HR Floor Joist Repair Kit (Patent Pending) is the standard solution for fixing holes in floor joists. Reinforcing holes in floor joists and joist reinforcement is required to strengthen floor joists due to oversized holes in joists or when you need to route plumbing or other utilities through one or more Floor Joists. Joist Reinforcers allow you to run utilities through one, or a series of joists, with holes up to 2.5" in diameter. The 2x6 HR Joist Reinforcer is made from 10 gauge galvanized steel. All fasteners are included.
Tools Needed:
- Screwgun and Drill (Electric or Cordless)
- Construction Adhesive (optional)
- 5/32" Drill bit (Included)
- Torx T25 Drive screw tip (Included)
- "C" Clamps (recommended)
Returns, Refunds, and Shipping Policies
With the exception of weekends, we make every attempt to ship orders within 24 hours of when they are received. Some orders that are placed early in the day may ship that day while others may not. If your project requires faster service please call and we will do our best to accommodate your needs.
Joist Reinforcer Installation Video
What code allows for holes in Floor Joists (without Joist Reinforcer)
1. Only holes are allowed in the center 1/3rd, no notches.
2. Holes in the outer 1/3rd's of the span must be at least 2" apart.
3. Hole diameter cannot exceed 1/3rd of the depth of the Joist.
4. Hole can be no closer than 2" from the Joist edge.
With a Joist Reinforcer
1. Holes can be placed anywhere along the length of the Joist up to 12" from supporting members.
2. Hole diameter can be up to 6".
3. Hole location can be as close at 1.5" from bottom or top of Joist.
