2x12 (11"), 2x10 (9"), 2x8 (7"), and 2x6 (5.5") 10 Gauge Galvanized Steel Plate, with fastener holes only, no notch or hole cut. Includes fasteners, pilot drill, and T24 Torx Driver. Repair for large knots, cracks, holes and notches.
Floor Joist Mending Reinforcers (MR) are designed to restore the full strength of joists compromised by knots, cracks, holes or notches. Floor Joist Mending Reinforcer plates are 10 Gauge G90 Galvanized steel which attach to one side of the joist via a pattern of provided structural fasteners. Fasteners are in included with each kit, including a T25 Torx Driver and 5/32" drill bit for pre-drilling fastener holes.
Limitations: Knots, cracks, or holes up to 6" diameter and with no less than 1.5" above and below the hole.
Mending Plate Kit includes:
1) Mending Plate
X) Matched quantity of 1/4" x 1-1/2" Structural T25 Torx Fasteners
1) T25 Torx Driver
1) 5/32" Drill Bit for pilot holes

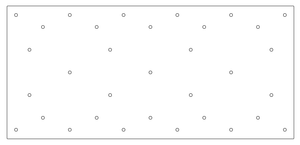

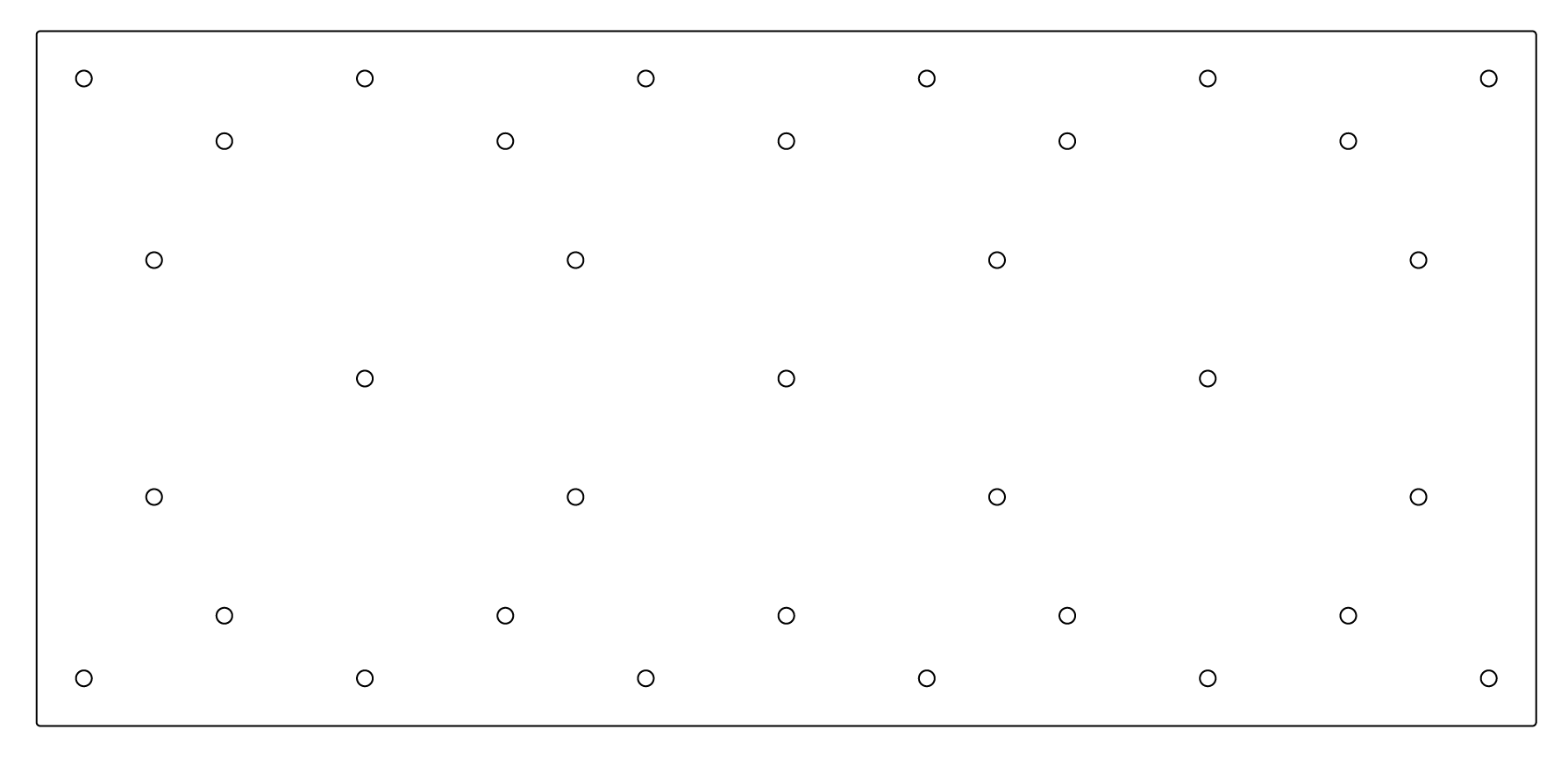

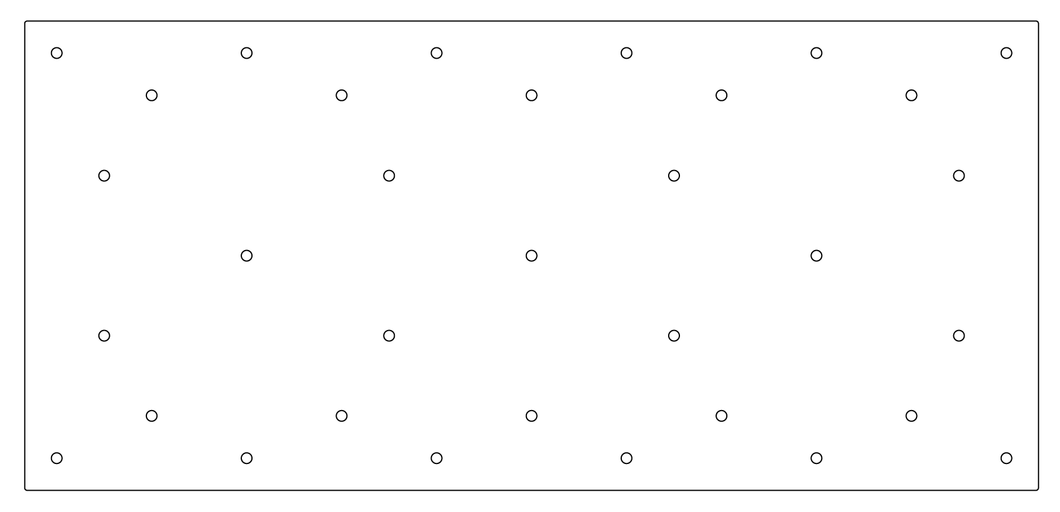

Available Mending Plate Sizes
2x12 (11" x 23-3/4")
2x10 (9" x 15-3/4")
2x8 (7" x 15-3/4")
1) T25 Torx Driver
1) 5/32" Drill Bit for pilot holes
Available Mending Plate Sizes
2x12 (11" x 23-3/4")
2x10 (9" x 15-3/4")
2x8 (7" x 15-3/4")
2x6 (5.5" x 15-3/4")
